Brand: Ramor Strutz
Features:

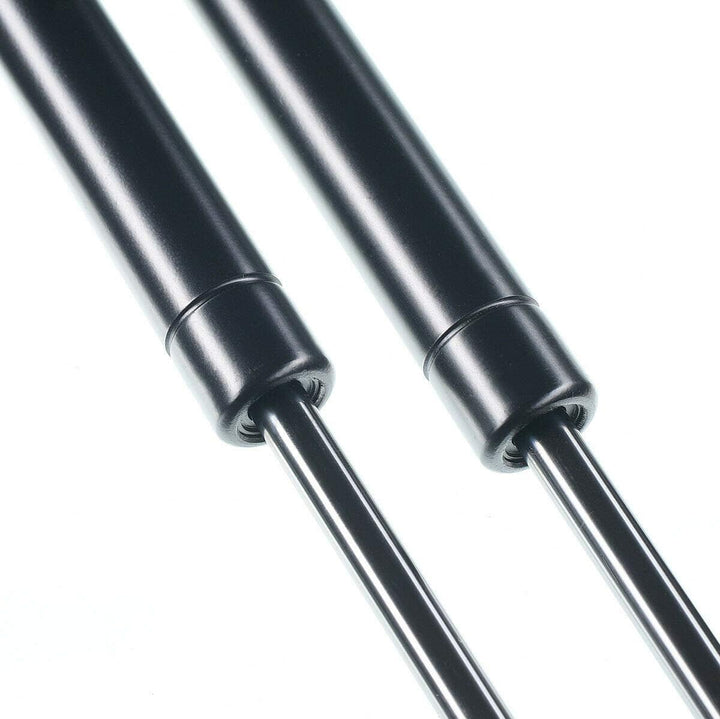

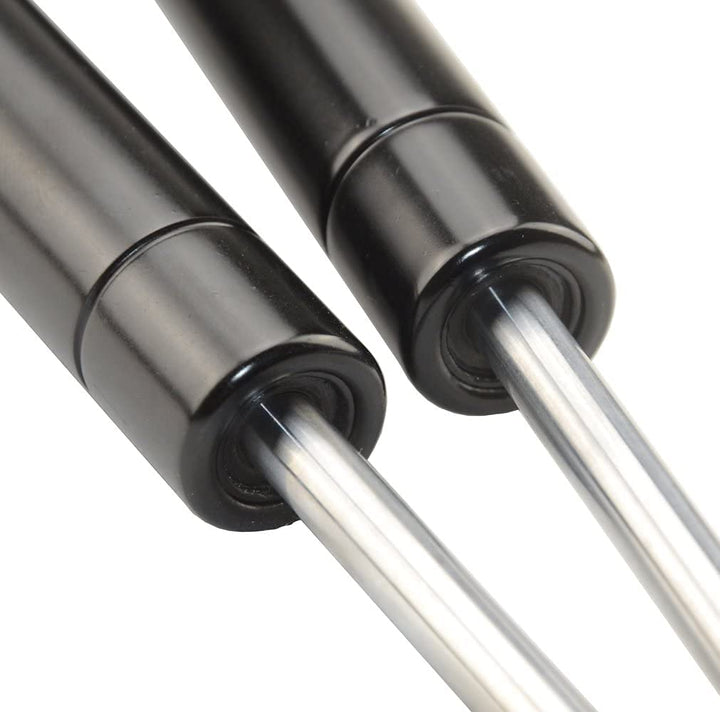

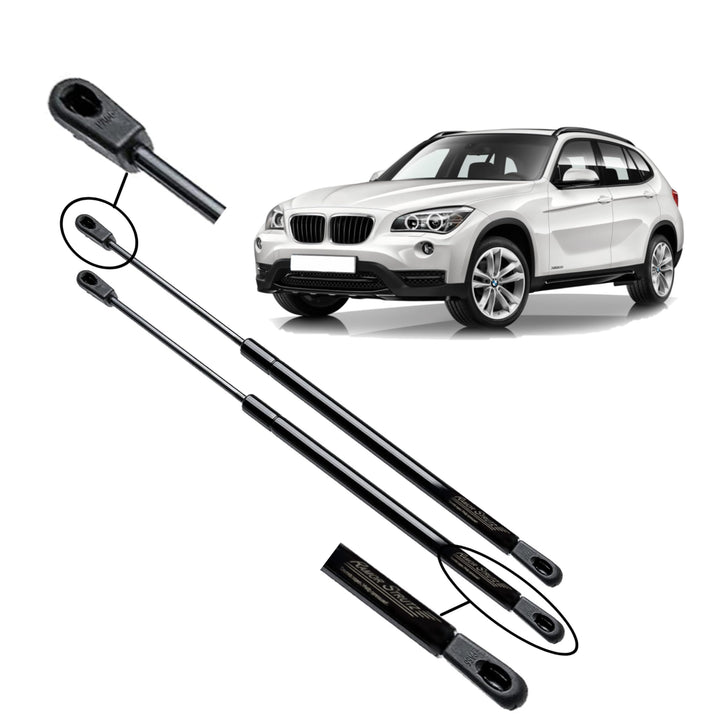

- Two boot gas struts compatible with a BMW X1 E84 2009-2016
- Replacement for 51242990136

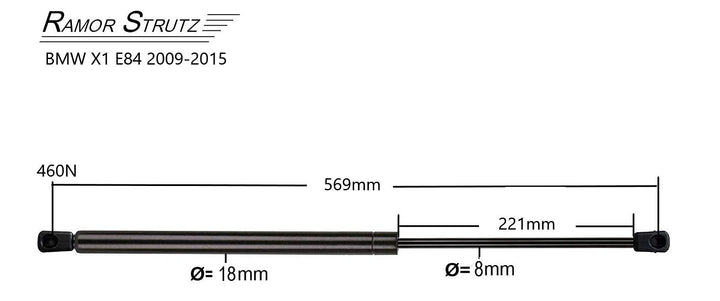

- Length 569mm, Stroke 221mm, Strength 460N
- Please watch the video in the images for a basic gas strut installation guide. We sell in pairs, if one side is gone then the other side wont last much longer.
- Replacing both sides ensures a return to original performance. All our gas struts are manufactured to equal or exceed original specification.

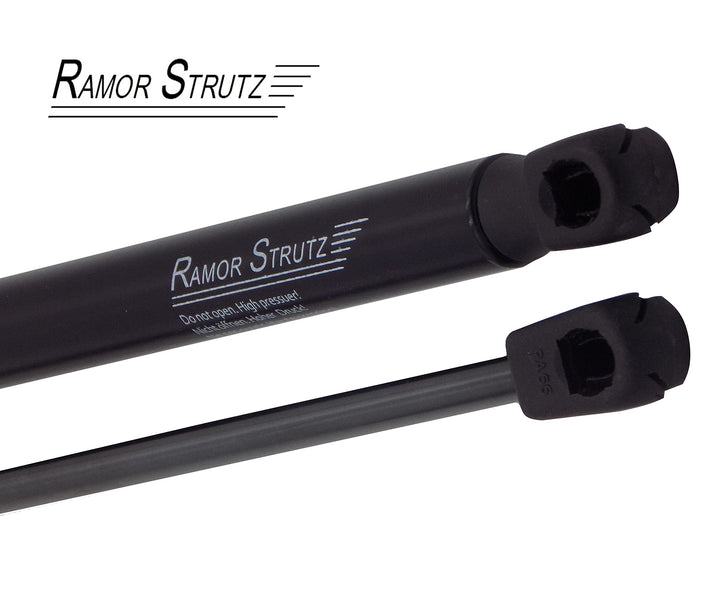

Part Number: RS-213
Details: These parts are compatable with X1 E84 2009-2015.

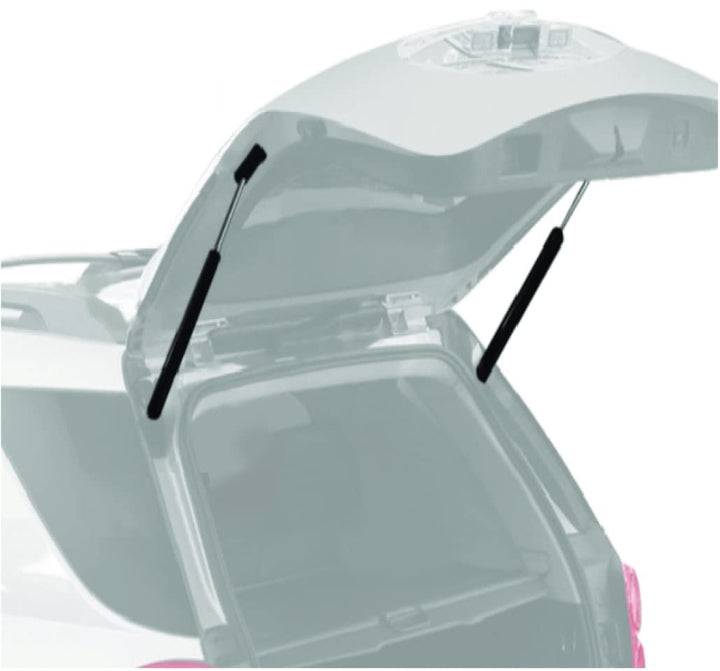

Tailgate/boot gas springs, struts, supports.
Replaces manufacturers part number: 51242990136, 2990136
Please use the parts finder above to see if this part is compatible with your vehicle.
Please Note:Our parts are built to or exceed all manufacturers specifications and standards
Assembly instructions.1. Since the tailgate cannot be supported without the two gas struts, it is strongly recommended thatyou ask an assistant to hold it during replacement of the old units.2. Using a small flathead screwdriver, release the retaining spring as shown in figure 1. It is not necessary to removethe spring, simply release or ease it and pull the strut away from its mounting bolt.3. Repeat for the other end. 4. Install the new strut by simply pressing the upper and lower mounting sockets into position. No needto release the spring, simply press into position.5. Your assistant may need to lift or lower the boot lid to locate the new strut properly.PLEASE NOTE Boot Gas Springs are always mounted with the piston pointing downward.
Package Dimensions: 23.2 x 3.5 x 2.0 inches
Support Tailgate.
Always have an assistant take the weight of the tailgate during the removal and installation process. It may be necessary to raise or lower the tailgate whilst installing.
Do not rely on makeshift props or supports.
Ease Spring.

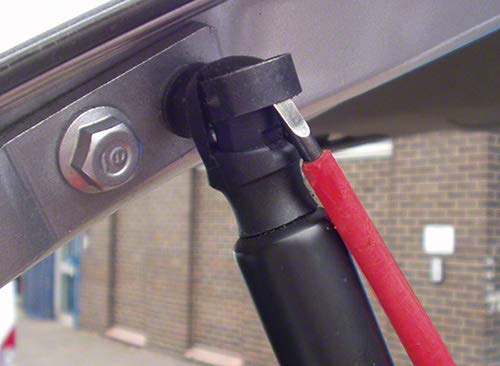

Insert a small flathead screwdriver behind the spring just enough to release the tension on the location pillar. There is no need to remove the spring.
Remove Strut.
Gently pull or tug the strut away from the location pillar. Repeat for the other end, insert screwdriver then ease away from location pillar. Remove both old struts before installing the new ones.
Replace Strut.
When both struts are removed install the new ones by gently pressing onto the location pillar. A gentle push or tap is all that is needed, no need to ease the spring.
